Replacement Parts
Keep your garage door operating smoothly with M&L Garage Door Services’ extensive selection of high-quality replacement parts.
We supply durable, reliable components designed to maintain your door’s safety, performance, and longevity. From rollers and cables to hinges, brackets, and more, we carry everything you need to keep your system running like new — proudly serving Cape Coral, Fort Myers, Naples, and the entire Southwest Florida area.

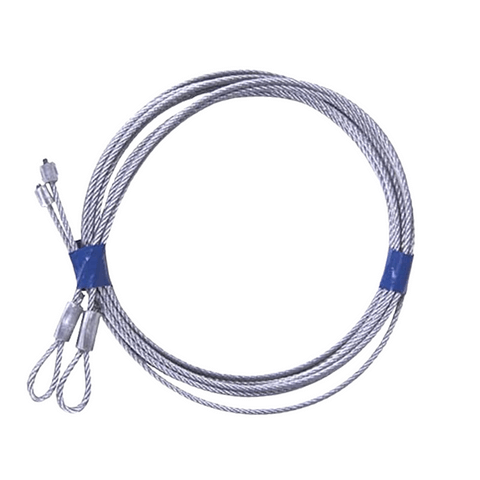

Cable Assembly For 8′ Garage Door High Torsion Spring 9′-6″ (8-DOOR-BLUE)
Description: Cable Assembly For 8′ High Torsion Spring 9′-6″
Set-up: 9’6″ by 1/8″ [7 x 19]
Material: Stainless Stee

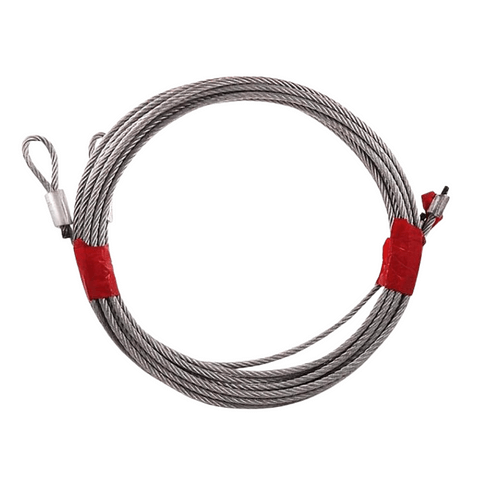

Cable Assembly For Garage Door 7′ High Torsion Spring 8′-6″ (7-DOOR-RED)
Description: Cable Assembly For Garage Door 7′ High Torsion Spring 8′-6
Set-up: 8′ – 6″ by 1/8″ [7 x 19]
Material: Stainless Steel

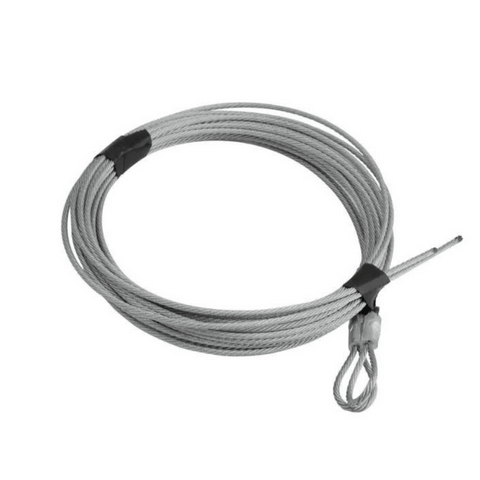

Cable Assembly For 8″ Garage Door High Extension Spring (8-DOOR-BLACK)
Description: Cable Assembly For 8″ Garage Door High Extension Spring
Set-up: 3/32 in. cable 7×7 strand 13 ft. length
Material: Stainless Steel

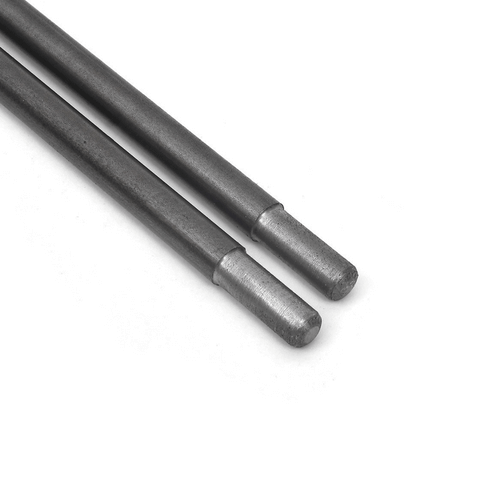

Premium Garage Torsion Spring Winding Bars for All Garage Doors -18″ Round (Pack of 2)
Description: The pair of torsion spring winding rods are specifically designed for increasing (winding) and decreasing (unwinding) the tension on residential garage door torsion springs

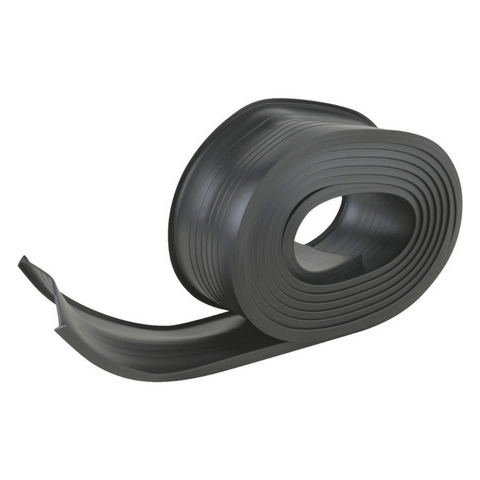

Garage Door Bottom Weather-strip Rubber Seal (18ft)(16ft)(9ft)
Description: Bottom Seal For Garage Doors – Weather Stripping Rubber Seal
Set-up: 16ft Overall Length (Width 3.75″)
Material: Rubber
Heavy-duty weather seal stays flexible
Garage Gauge Steel Replacement Hinge – #1
Description: Premium Replacement Garage Hinge for Garage Doors (Pack Of 4)
Measures: Approximately 2.25″ wide and vary in length depending on the number. #1 hinge is approximately 7.75″ in length.
Category: Garage Door Replacement Hinges
Material: Galvanized Steel
Number: 1

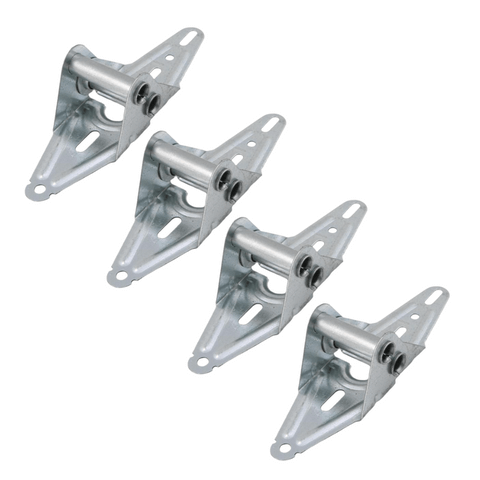

Garage Gauge Steel Replacement Hinge – #2
Description: Premium Replacement Garage Hinge for Garage Doors (Pack Of 4)
Measures: Approximately 2.25″ wide and vary in length depending on the number. #1
Category: Garage Door Replacement Hinges
Material: Galvanized Steel
Number: 2

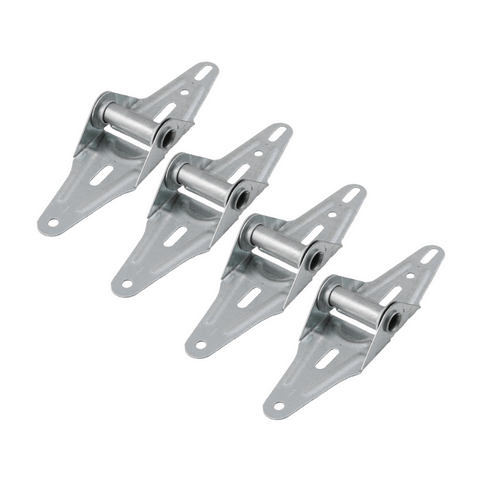

Garage Gauge Steel Replacement Hinge – #3
Description: Premium Replacement Garage Hinge for Garage Doors (Pack Of 4)
Measures: Approximately 2.25″ wide and vary in length depending on the number. #1
Category: Garage Door Replacement Hinges
Material: Galvanized Steel
Number: 3
Garage Gauge Steel Replacement Hinge – #4
Description: Premium Replacement Garage Hinge for Garage Doors (Pack Of 4)
Measures: Approximately 2.25″ wide and vary in length depending on the number. #1 hinge is approximately 7.75″ in length.
Category: Garage Door Replacement Hinges
Material: Galvanized Steel
Number: 4
Cable Drums for Garage Doors up to 8″ Door, Std Lift, 400-12 (Pair)
Description: Cable Drums for Garage Doors up to 12″ Door, High Lift, 400-12 (Pair)
Set-up: 4″ Drum has a 12″ Circumference.
Capacity: 375 lbs per drum
Maximum Cable Size: up to 5/32″
Cable Length: Floor to shaft center +12″
Material: Cast Aluminum Construction

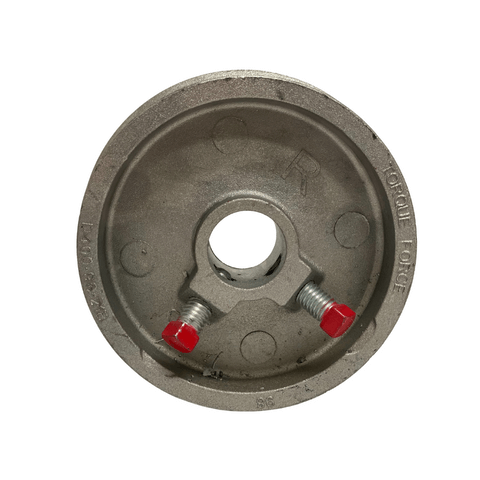

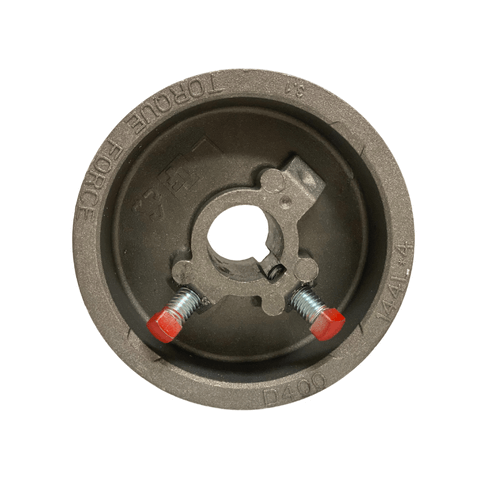

Cable Drums for Garage Doors up to 8″ Door, Std Lift, 400-8 (Pair)
Description: Cable Drums for Garage Doors up to 8″ Door, Std Lift, 400-8
Set-up: 4″ Drum has an 8” Circumference.
Capacity: 265 lbs per drum
Maximum Cable Size: 1/8″
Cable Length: Floor to shaft center +8″
Material: Cast Aluminum Construction

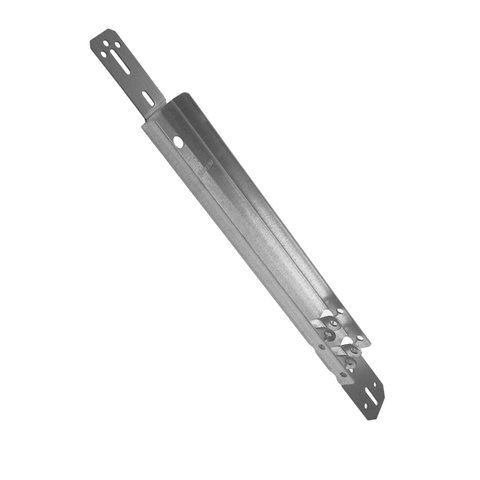

Reinforcement Bracket Garage Door Operator Bracket 21 Inch Orb (GDO21)
Description: Garage Door Operator Bracket 21 Inch Orb
Set-up: 21″ Length – Installs on the top panel of the door. Using this bracket to attach the garage door to the opener.
Material: Galvanized Steel
Reinforcement Bracket Garage Door Operator Bracket 18 Inch Orb (GDO18)
Description: Garage Door Operator Bracket 18 Inch Orb
Set-up: 18″ Length – Installs on the top panel of the door. Using this bracket to attach the garage door to the opener.
Material: Galvanized Steel

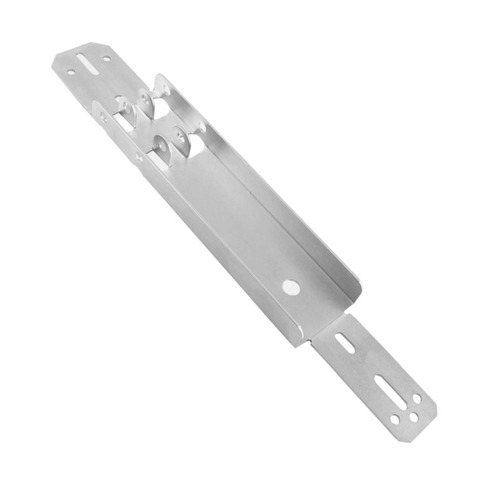

Reinforcement Bracket Garage Door Operator Bracket 24 Inch Orb (GDO24)
Description: Garage Door Operator Bracket 24 Inch Orb
Set-up: 24″ Length – Installs on the top panel of the door. Using this bracket to attach the garage door to the opener.
Material: Galvanized Steel

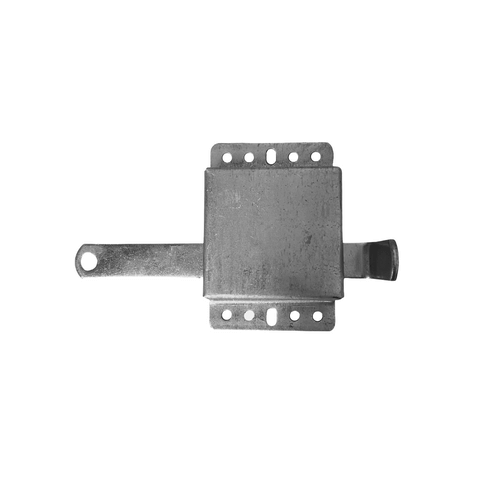

Garage Door Adjustable Slide Lock Residential, Universal (GDSBB)
Description: Garage Door Adjustable Slide Lock Bracket for Residential use
Set-up:
Garage Door Type: Residential
Material: Galvanized Steel

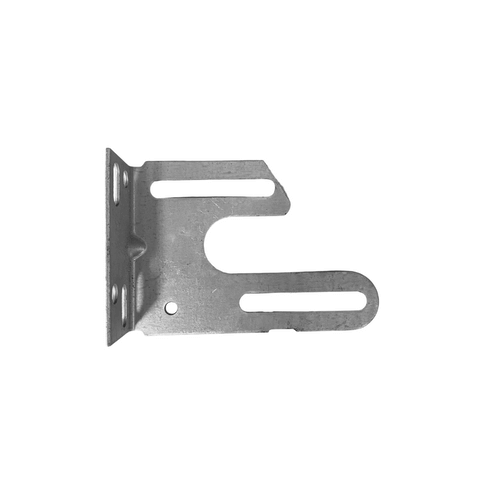

Garage Door Mini-Resi U.S.A Spring Anchor Plates (GDAP)
Description: Garage Door Mini-Resi U.S.A Spring Anchor Plates
Set-up: 1-3/4 to 3-3/4 ID Springs. 3-3/8 Shaft Offset. 12 Gauge
Garage Door Type: Universal
Material: Galvanized Steel

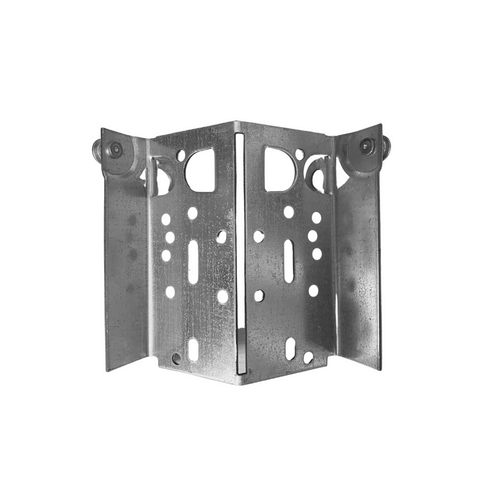

Bottom Bracket Residential and Commercial (Pack of 2) (GDBB)
Description: Garage Door Adjustable Bottom Bracket (Pack of 2)
Set-up: 5-11/16 height x 2-11/16 width – 1-1/4″ side flange. 13 Gauge; Milford Pin
Garage Door Type: Residential, Commercial
Material: Galvanized Steel

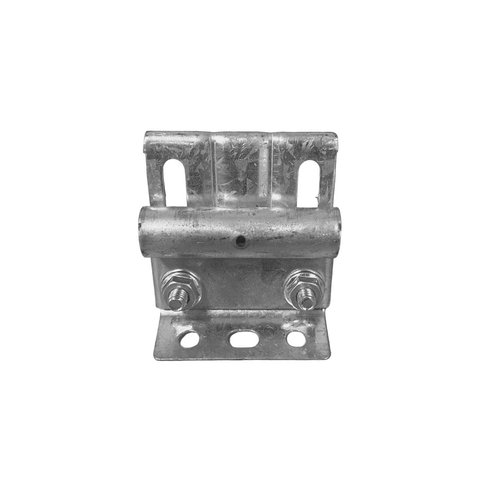

Garage Door Junior Adjustable Top Fixture, Universal (GDTF)
Description: Garage Door Adjustable Top Fixture / Bracket
Set-up: 1/2″ long X 2 1/2″ wide
Garage Door Type: Residential, Commercial
Material: Galvanized Steel

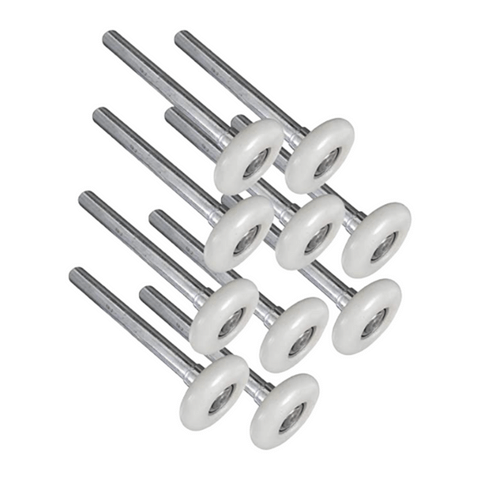

Garage Door Rollers 7″ Bearing Nylon 11 Premium Wheel (Pack of 10)
Description: Garage Door Rollers 7″ Bearing Nylon 11 Premium
Category: Garage Door Rollers
Material: Steel
Wheel Size: 7″
Wheel Type: Nylon

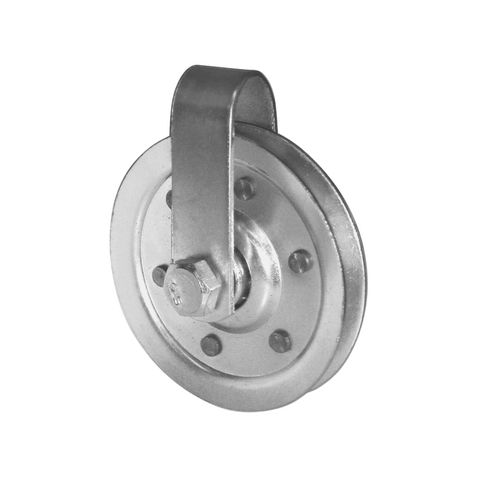

Garage Door 3″ Clevis Pulley for 1/8 in. cables (GDP3)
Description: Garage Door 3″ Pulley for 1/8 in. cables
Set-up: 3″ Diameter x 0.75″ Depth
Capacity: Rated for 100 lbs. at 10,000 cycles
Garage Height: For a 7 ft. or 8 ft. high garage door
Material: Cast Aluminum Construction

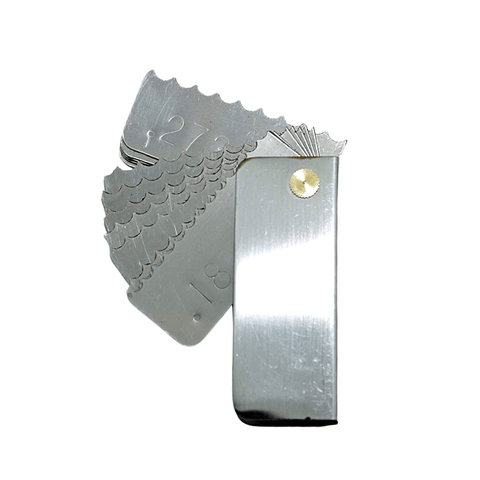

Garage Door Spring Measure Tool Residential Pocket Wire Gauge (GDWG)
Description: Garage Door Spring Measure Tool, Wire Gauge
Measures: Wire Gauge .1875 -.3125 .187 – .312 wire
Matches: Match gauge to

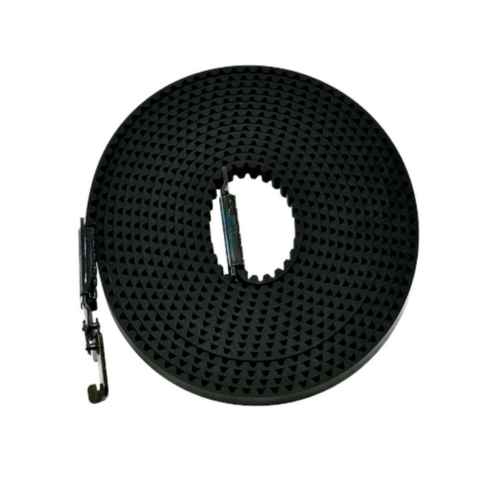

BELT KIT, 7' - 041A5434-11A
041A5434-11A is a one piece 7 ft. Belt Assembly Replacement Kit. For use with various LiftMaster® and Chamberlain® Belt Drive Garage Door Openers. This belt assembly kit is for use on a 7 ft. residential garage door only. Check the owner’s manual or replacement parts diagram for specific part information before ordering to ensure compatibility.
Also known as: 41A5434-1, 41A5434-11, 41A5434-11A, 041A5434-11
BELT KIT, 8' - 041A5434-13A
041A5434-13A is a one piece 8 ft. Belt Assembly Replacement Kit. For use with various LiftMaster® and Chamberlain® Belt Drive Garage Door Openers. This belt assembly kit is for use on a 8 ft. garage door. Check the owner’s manual or replacement parts diagram for specific part information before ordering to ensure compatibility.
Also known as: 41A5434-13, 41A5434-13A
